Slab Seal Joints Exporters

Slab Seal Joints Exporters

Saradhi engineering are best Slab Seal Joints Exporters in Hyderabad.We are confident of providing good quality work and have an excellent record for timely supplies. Our Manufacturing facilities are fully equipped with modern equipments which includes advanced quality control and material testing laboratory. Supported by highly experienced and trained team, our performance is totally compliant with the specification of our Customers.

Why Saradhi Engineering

Our products are well known for their best quality and incredible finishes at the reasonable cost in the stimulate time period. Slab seal joints are used primarily in order to relieve stress due to confinement of a slab. Slab seal joints is designed safely to absorb the heat-induced expansion and contraction of various construction materials either to absorb vibration or to allow movement due to ground settlement or earthquakes. Our products are developed to carry heavy and exact traffic load with minimum noise so that the driving experience can be with maximum pleasure.

Specifications :

  • Edge Beam Thickness: 10 mm
  • Stud Dia: 16 mm
  • Stud Height: 150 mm
  • COMPRESSION SEAL EXPANSION JOINTS

    SARADHI COMPRESSION SEAL EXPANSION JOINT consists of steel armoured nosing at two edges of the joint gap suitably anchored to the deck concrete and a performed chloroprene elastomer compressed and fixed into the joint gap with special adhesive girder.

    The compression seal will cater for a horizontal movement upto 40mm and vertical movement of 3mm.

    It is recommended for simply supported or continuous spans right or skew moderately curved with maximum horizontal movement not exceeding 40mm.

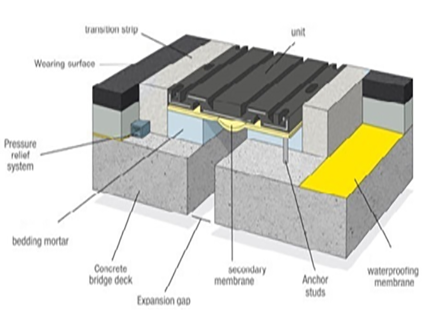

    SLAB SEAL EXPANSION JOINT

    SARADHI SLAB SEAL joint will consist of steel insert and elastomeric slab unit. This type of seal is recommended for simply supported or continuous spans, right or skew (less than 20 degree), moderately curved with maximum movement upto 50mm.

    SARADHI SLAB SEAL expansion joint has been used for many years with a good success rate. However, the larger size of the joint tends to create more noise under traffic.

    SARADHI Elastomeric joints are normally supplied in unit length and fixed to the deck using bolt anchors. If required tensioned cast iron bolts should be used to anchor this joint. If site drilled installations are used, the holes should be under reamed prior to fixing the bolts. An adequate length of the bolt should be de-bonded so that any relaxation over the bolt length does not result in complete loss of tension in the bolt.

    EXPANSION FILLER JOINT





    COMPRESSION PAVEMENT SEAL



    CAP SEAL EXPANSION JOINT ( OMEGA SEAL)

    It provides unique properties to withstand high water pressure in combination with large movements in all directions.

    It is an ideal solution for joints where large gap movements are expected as a result of temperature effects and/or settlement Omega profile can be manufactured in a variety of sizes to fit almost any application. It is ideal for Metro rail projects
